Learn How Power Gets from the Meter to the Main in the New “Residential Wiring: Service Entrance Cables” Course

Every circuit in a home starts with the service entrance conductors. These wires run from the utility meter to the main breaker, carry the entire dwelling load, and stay live even with the main switched off.

HeatSpring’s new course with Journeyman Electrician Jenny Conrardy, Residential Wiring: Service Entrance Cables, follows that power from the utility transformer to the service panel. You’ll learn how service entrance conductors are sized, routed, landed, grounded, and bonded, along with the NEC rules and utility requirements that govern each step. It’s part of the Residential Wiring: From Utility to Home Loads series, built for people who want the hows and whys behind a residential service plus the nuts and bolts of installing one.

What You’ll Learn

The course walks through a residential 120/240-volt service from the utility side to the main breaker. Key topics include:

• Overhead vs. underground services. Compare service drops and laterals, see how a meter-only pedestal differs from a pedestal with its own breaker, and learn why the first means of disconnect decides where the bond and grounding electrode conductor go.
• Who owns what. Sort out the handoff between utility and customer equipment at the meter, the mast, the point of attachment, and the service entrance conductors, so you know what you’re allowed to touch.
• Service entrance cable types. Learn where SEU, SER, USE-2, and THWN-2 fit on a residential job, and why using SEU as a subpanel feeder is a common inspection flag.
• Wire sizing. Read NEC Table 310.16, then see how Table 310.12 lets dwelling service conductors be sized at 83% of the service rating. That’s why 4/0 aluminum is the standard for a 200-amp house. You’ll also size the neutral and the grounding electrode conductor using Table 250.66.
• Grounding and bonding. Understand why neutral and ground are bonded in exactly one place, what objectionable current is, and why the neutral can be bare only at the service.
• Grounding electrodes. Cover ground rods, metal water pipe, and concrete-encased (Ufer) electrodes, plus bonding for water piping, gas piping, and the intersystem bonding termination.
• NEC clearances and working space. Review overhead drop clearances in NEC 230.24, cable support and weatherhead rules, and the working space requirements in NEC 110.26 for mounting the panel.
• Six common inspection flags. Avoid missing drip loops, SEU used as a feeder, loose aluminum lugs, missing bonds, nicked conductors, and unsealed conduit.

Three Ways to Learn

Some concepts click best on a slide, while others make more sense when you watch them happen. Each concept is taught in the format that fits it best.

Slide-Based Lectures

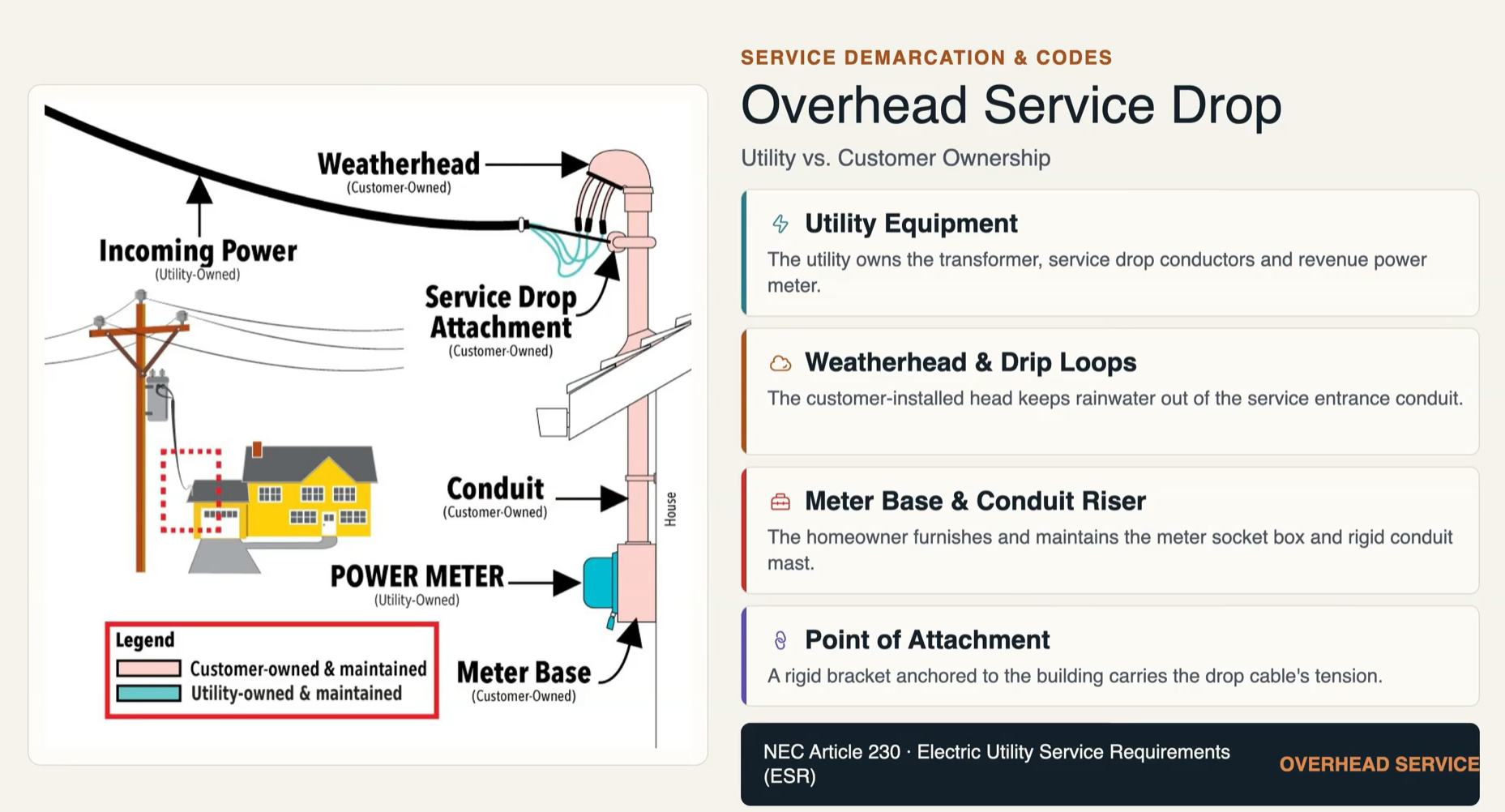

Illustrated lectures break down the code and the concepts: labeled panel diagrams, ownership maps for overhead and underground services, and abbreviated NEC tables that cut the noise so you can focus on the values that matter. Code references are called out along the way, helping you get comfortable navigating the code book.

Live Demonstrations with Jenny

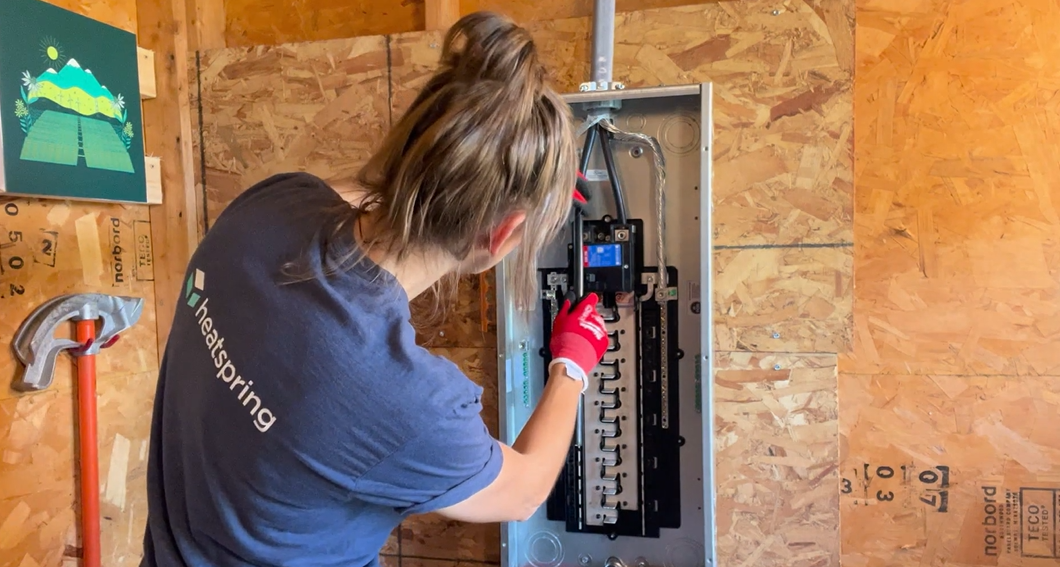

Watch Jenny mount a 200-amp service panel, install the SEU connector and bushing, hand-form the bare aluminum neutral, and land and torque the service conductors. Along the way she shares field habits that save rework. A second demo breaks down the four main wires that frame the system and what each one does.

Interactive Simulations

Two downloadable simulations let you experiment with the concepts yourself.

• Wire Gauge Simulation. Compare conductor sizes from 14 AWG through 4/0 and into kcmil sizes, see diameter and area side by side, and watch resistance change as you switch between copper and aluminum or raise the conductor temperature.

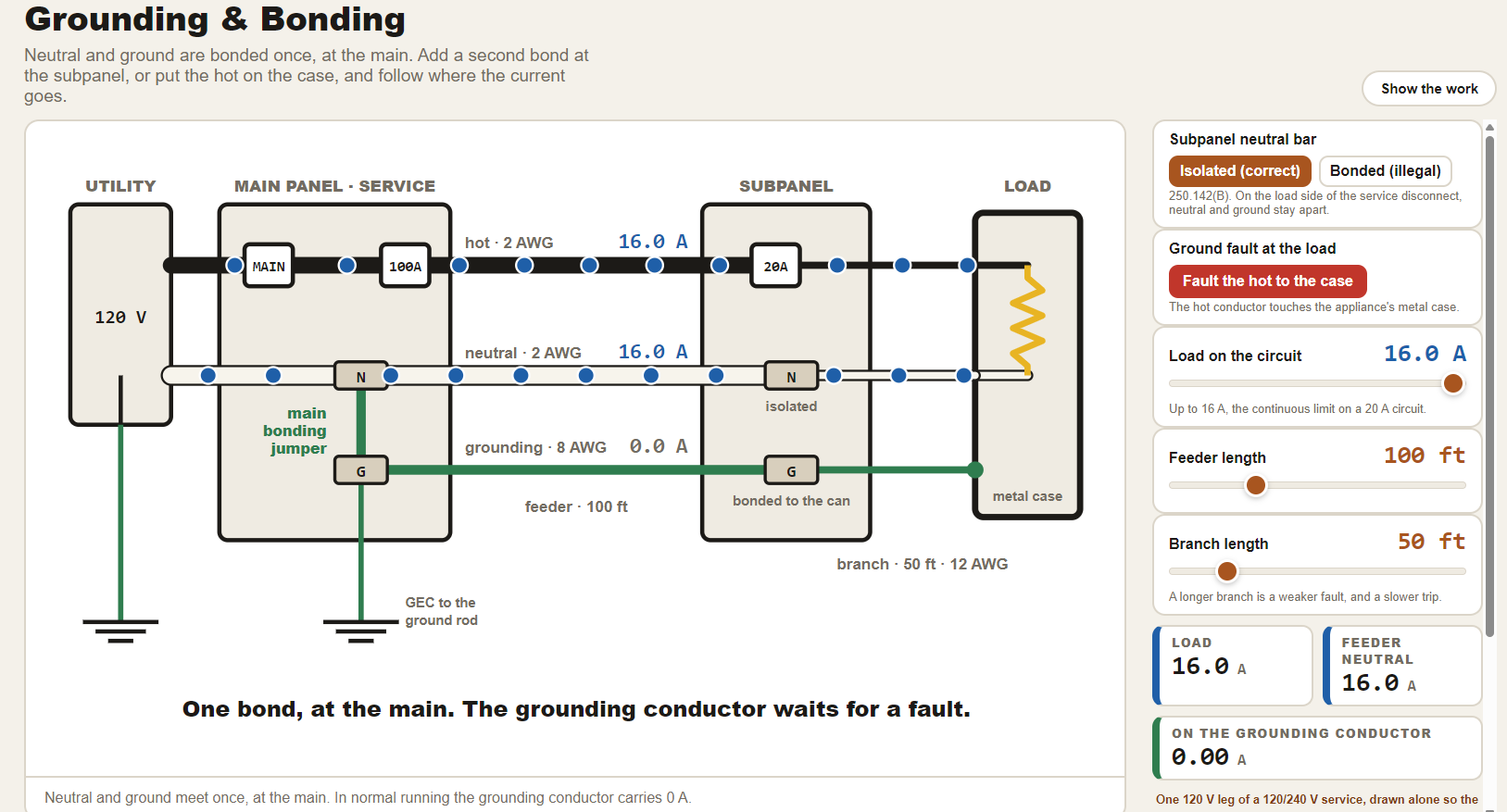

• Grounding and Bonding Simulation. Trace current through a main panel, subpanel, and load. Add an illegal neutral-to-ground bond at the subpanel and watch current split onto the ground path. Trigger a ground fault and see how fault current and breaker response change.

Meet Your Instructor

Jenny Conrardy is a Journeyman Electrician and NABCEP PV Installation Professional who has worked in the solar industry since 2019. She is also an adjunct instructor at Moraine Park Technical College, where she teaches first-year electrical apprentices. Jenny is a member of Solar for Women and WRISE and an advocate for equity in the trades.

Throughout the course, she’ll be on the discussion board answering your questions.

Who This Course Is For

This course is a strong fit for:

• Electrical apprentices and new electricians preparing for their first service installs and swaps
• Solar and energy storage installers who work around meters, main panels, and service conductors
• Contractors, inspectors, and trade students who want a clearer picture of grounding, bonding, and service sizing
• Anyone curious about how power gets from the utility to the loads in a home

This course is for education and training. Real-world service work requires a permit and a licensed electrician. Always check with your utility and local AHJ before starting, since their requirements can be stricter than the NEC.

Enroll Today!

Service panels can look intimidating the first time you open one, and a healthy respect for that equipment is a good thing to keep. This course pairs that respect with the code knowledge, a close look at real field technique, and interactive simulations to help you approach that panel prepared.

Enroll your team  in Residential Wiring: Service Entrance Cables today!
